ChiyanMap

English | 简体中文

ChiyanMap is a high-performance, client-side map and radar mod designed exclusively for Minecraft Bedrock Edition (Windows). Built on the LeviLamina native framework and deeply integrated into the DirectX 11 / 11On12 rendering pipeline, it runs purely within the client—requiring zero server plugins for a buttery-smooth real-time HUD map experience.

⚠️ Disclaimer: All code in this mod was generated and written by AI (Artificial Intelligence). By using this mod, you acknowledge this and assume all associated risks.

📖 Comprehensive Guides: Detailed documentation and tutorials are available in the Docs Directory.

🌟 Key Features

• 🗺️ Real-Time MiniMap

  • Seamless toggle between circular and square shapes, free dragging, scaling, and view distance radius adjustment.
  • Smooth player-direction rotation or locked to North; smart potion HUD push-box avoidance.
  • Multi-distance layered entity radar (passive mobs, players, hostile mobs, and tamed pets with glowing auras).

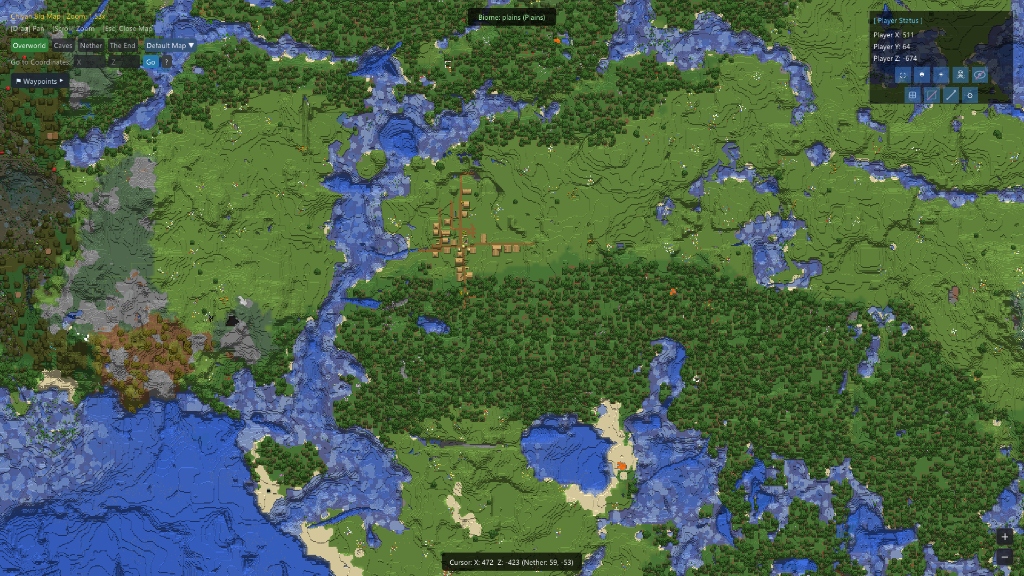

• 🌍 Fullscreen World Map

  • Ultra-smooth panning and zooming, instant coordinate jumping, and cross-dimension viewport roaming.
  • Selection box export of high-resolution map PNGs (with customizable hotkey).
  • Integrated Seed Map supporting structure distribution, slime chunk, and biome predictions.

• 📍 Waypoints & Death Points System

  • Waypoint Sets management, category drawer filtering, custom colors, and icons.
  • In-game 3D beacon beams and distance HUD indicators; hotkey set switching with smooth on-screen toast notifications.
  • High-precision automatic death location recording, one-click conversion to permanent waypoints, and Ctrl+Z undo restoration for accidental deletions.

• 🌌 Multiworld & Instance Roaming

  • Separate isolation and interconnected roaming between server worlds and custom map instances, automatically detecting spawn changes.
  • Deep cascade cleanup upon instance deletion—zero leftover orphaned files.

• ⛏️ Cave Map & Anarchy Detection

  • Vertical depth-sliced cave X-ray mode reveals underground layouts at a glance.
  • Anarchy chunk history modification detection to identify player structures and terrain modifications.

• ✏️ Drawing & Annotation System

  • Freehand drawing on the fullscreen map with pens, polylines, arrows, rectangles, circles, text labels, and layer management.
  • Full undo (Ctrl+Z) and redo (Ctrl+Y) support.

• ⚡ Ultimate Performance & Stability

  • Multi-threaded asynchronous layered disk writes and self-healing in-memory cache management.
  • Full-pipeline exception barrier across DXGI Present—0 crashes, 0 frame drops.
  • Native independent IME input host and 16 built-in localization languages.

⌨️ Default Hotkeys

💡 All hotkeys can be rebound or combined in the settings panel (gear icon on the world map).

📦 Installation

1. Ensure LeviLamina is installed for your Minecraft Bedrock client version.
2. Download the latest ChiyanMap.zip from Releases.
3. Extract the ChiyanMap folder into your client's mods/ directory (e.g., mods/ChiyanMap).
4. Launch the game.

🛠️ Building from Source

Prerequisites

• Operating System: Windows 10 / 11 (x64)
• Compiler: Visual Studio 2022 (Desktop development with C++, MSVC v143+)
• Build Tool: XMake (3.0.0+)
• Standard: C++23

Build Steps

# 1. Clone repository
git clone https://github.com/qing85566/ChiyanMap.git
cd ChiyanMap

# 2. Configure and build (Release)
xmake f -m release
xmake

# Compiled binaries will be generated in bin/ChiyanMap/

📂 Repository Structure

ChiyanMap/
├── .github/                 # GitHub CI/CD workflows and Issue/PR templates
├── assets/                  # Media assets and in-game preview screenshots
├── docs/                    # Complete user documentation and guides (en/ & zh/ suites)
├── heads/                   # High-resolution entity radar icon assets (PNG)
├── lang/                    # Localization dictionaries for 16 languages (JSON)
├── src/                     # C++23 core source code
│   ├── hooks/               # LeviLamina & MinHook engine hooks
│   │   ├── BeaconRenderHook.h   # In-world 3D beacon beam rendering hook
│   │   ├── DX11Hook.h           # DX11/11On12 SwapChain Present & ImGui render barrier
│   │   ├── HookRegistry.h/.cpp  # Centralized hook registration and lifecycle management
│   │   ├── PlayerHook.h         # Player tick, rotation, dimension shift, and death hooks
│   │   └── UIRenderHook.h       # In-game UI coordination and input arbitration
│   ├── mod/                 # Mod entry point and lifecycle safety
│   │   ├── ChiyanMap.h/.cpp     # Mod lifecycle, config hot-reloading, and hotkey dispatch
│   │   └── MemoryOperators.cpp  # Safe cross-DLL new/delete memory operator overloads
│   ├── render/              # Shading, textures, and atlas rendering
│   │   ├── BlockColorMap.h/.cpp # Block ID/State to RGBA color and elevation hillshading
│   │   ├── EntityIconManager.h  # Entity head icon texture loading, caching, and radar rendering
│   │   └── MapGuiAtlas.h        # Procedural and vector GUI icon atlas rendering
│   ├── state/               # State machine, data models, and business logic
│   │   ├── AnarchyManager.h/.cpp     # Anarchy chunk modification history and footprint detection
│   │   ├── DatabaseManager.h/.cpp    # Persistent storage and caching backend
│   │   ├── DeathPointManager.h/.cpp  # Death point tracking, history, and Ctrl+Z undo restoration
│   │   ├── DrawingManager.h/.cpp     # World map vector drawings, annotations, and layer undo/redo
│   │   ├── LanguageManager.h/.cpp    # 16-language i18n loader and real-time switching
│   │   ├── MapCacheManager.h/.cpp    # Multi-threaded layered async disk writing & self-healing LRU cache
│   │   ├── MapRenderState.h/.cpp     # MiniMap and World Map ImGui rendering coordinator
│   │   ├── MultiworldManager.h/.cpp  # Multiworld/dimension instance isolation and cascade cleanup
│   │   ├── SeedMapIconAtlas.h        # Biome and structure icon atlas for Seed Map
│   │   ├── SeedMapManager.h/.cpp     # Seed Map generation, structure prediction, and biome queries
│   │   ├── SpecialGridManager.h/.cpp # Coordinate grids, chunk boundaries, and slime chunk overlays
│   │   └── WaypointManager.h/.cpp    # Waypoint sets, categorization, drawer filtering, and beacons
│   └── worldgen/            # Bedrock world generation wrappers
│       ├── BedrockBiomeValidator.h/.cpp # Bedrock biome validation and derivation
│       ├── Random.h/.cpp                # Bedrock PRNG (pseudo-random number generators)
│       ├── StructureCatalog.h/.cpp      # Catalog of Bedrock structure generation traits
│       ├── TileQuery.h/.cpp             # Tile spatial query and chunk calculation pipeline
│       └── WorldGenTypes.h              # Data structures and geometry types for world generation
├── third_party/             # Third-party dependencies
│   └── cubiomes-bedrock/    # High-performance C library for Bedrock biome & structure algorithms
├── .clang-format            # Code formatting rules
├── .clang-tidy              # Static code analysis configuration
├── LICENSE                  # GNU General Public License v3.0 text
├── manifest.json            # LeviLamina mod manifest
├── tooth.json               # LeviLamina package manager configuration
└── xmake.lua                # XMake build automation script

Module Responsibilities

• src/mod/ (Mod Lifecycle): Core initialization entry point. Manages subsystem bootstrapping during LeviLamina load, registers commands and event callbacks, listens for hotkeys, and provides safe memory allocators.
• src/hooks/ (Engine Hooks): MinHook-based hooks intercepting DirectX 11 Present / ResizeBuffers to run the ImGui render pipeline with full exception safety, as well as player tick hooks to synchronize coordinates, rotations, dimension shifts, and death events.
• src/render/ (Rendering Pipeline): Computes block colors, elevation hillshading, dynamic entity icon loading and caching, and procedural vector GUI icons.
• src/state/ (State Machine & Logic): The core engine of the mod. Handles MiniMap and World Map render states, multi-threaded asynchronous chunk tile caching, waypoint/deathpoint persistence, multiworld instance management, vector drawing layers with undo/redo, seed map computation, and 16-language localization.
• src/worldgen/ & third_party/ (Worldgen & Algorithms): Integrates the ported C cubiomes-bedrock library to predict Bedrock biomes, slime chunks, and structures on the client side without needing server permissions.
• docs/ (Documentation): Comprehensive 9-part user guide and tutorial collection covering every aspect of the mod.
• heads/ & lang/ (Assets & Locales): High-resolution mob head icons for the entity radar and JSON dictionaries for 16 supported languages.

📄 License

This project is licensed under the GNU General Public License v3.0 (GPL-3.0).
